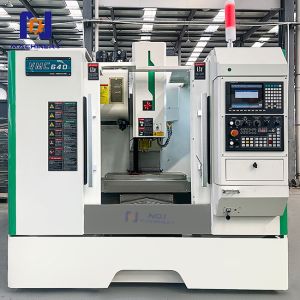

VMC640 3 Axis/4 Axis CNC Milling Machine Vertical Machining Center for Metal Processing
Product Description
Machining center series products are capable of performing a variety of processes such as milling, drilling, tapping, and boring. They are primarily used in the production of precision molds,automotive parts,aerospace components, and the batch processing of high-precision parts for regular production.
Standard Configuration:
1.SYNTEC 22MA control system
2.BT40 Taiwan 8000 RPM spindle
3.Taiwan HIWIN screw
4.Taiwan HIWIN 3 axis roller linear rails
5.Taiwan OKADA 16 Hat ATC
6.Electrical cabinet cold air exchanger
Product Specification
| MODEL | | VMC640 |
| Size of worktable | mm | 800*300 |
| T-shaped groove for table | mm | 3-16*80 |
| Maximum load on table | kg | 200 |
| X/Y/Z rail width | mm | 30/30/30 |
| X/Y/Z ball screw specification | mm | 3010/3010/3010 |
| X/Y/Z Axis stroke | mm | 600*360*450 |
| X/Y/Z motor torque | NM | 6/6/10(Contracting brake) |
| Spindle face to table position | mm | 120-520 |
| Distance from Spindle Center to column | mm | 380 |
| Cutting feed rate | mm/min | 1-8000 |
| X/Y/Z axis fast feed | m/min | 48/48/48 |
| Spindle end taper/diameter | mm | BT40-120 |
| Spindle motor power | kw | 5.5 |
| Maximum spindle speed | rpm | 8000 |
| Form of Tool Bank | - | Hat/Disc |
| The capacity of knife storage | tools | 16 |
| Maximum tool diameter/weight | mm/kg | 78/90/8 |
| Tool change time | sec | 2.5 |
Product Display
