TCK50 High Quality Turning and Milling Machine Slant Bed Cnc Lathe for Complex processing
A high-performance precision CNC lathe, the TCK50 adopts an inclined bed and monolithic structure—delivering exceptional rigidity and stability that make it ideal for high-speed, high-precision turning operations. Fitted with a mainstream CNC system, it offers user-friendly operation and automatic machining capabilities for complex components. Widely applied in manufacturing precision parts for the automotive, electronics, and medical device industries, it stands as a top choice for boosting production efficiency and product quality.
Standard Configuration:
1. GSK 988 TA
2. A2-6 spindle unit
3. Taiwan HIWIN screw/rail line
4. Taiwan 8-station servo Tool turet
5. 8-inch hydraulic Chuck
6. Hydraulic tailstock
Product Specification:
| Name | Unit | TCK50 |
| Maximum rotation diameter on the bed | mm | Φ550 |
| Maximum cutting diameter | mm | Φ520 |
| Processing diameter under the turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 |
| X-axis moving speed | mm/min | 24000 |
| Z-axis moving speed | mm/min | 24000 |
| Handwheel | mm | 0.001/0.01/0.1 |
| X, Z feed speed | mm/min | 0~5000 |
| X, Z manual feed speed | mm/min | 0~1260 |
| X-axis repeat positioning accuracy | mm | 0.005 |
| X-axis positioning accuracy | mm | 0.006 |
| Z-axis repeat positioning accuracy | mm | 0.006 |
| Z Axis positioning accuracy | mm | 0.008 |
| Spindle speed | rpm | 35-3000 |
| Maximum spindle torque | N.m | 48 |
| Spindle nose |
| A2-6 |
| Spindle through hole diameter | mm | Φ67 |
| Hollow hydraulic chuck through hole diameter | mm | Φ50 |
| Chuck |
| 10 inch 3-jaw |
| Number of tool holders |
| 12-station |
| Tool change time | s | 0.25 |
| Tool installation size | mm | 25×25 |
| Borrowing tool holder installation diameter | mm | Φ32 |
| Tail stock travel | mm | 350 |
| Top taper |
| MT-5# |
| Main motor power | kw | 7.5/11 (4500rpm) |
| Main motor torque | N.m | 48 |
| X-axis feed motor power | kw | 2.3 |
| X-axis feed motor torque | N.m | 15 |
| Z-axis feed motor power | kw | 2.3 |
| Z-axis feed motor torque | N.m | 15 |
| Coolant capacity | L | 200 |
| Motor type (1HP) | kw | 0.18 |
| Installation (length * width * height) | mm | 2697/1795/1860 |
| Machine weight | kg | 3600 |

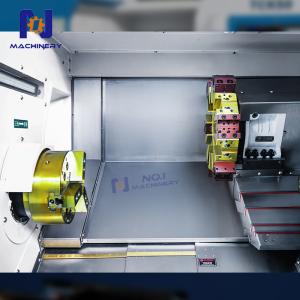

Product Display:
